Metal

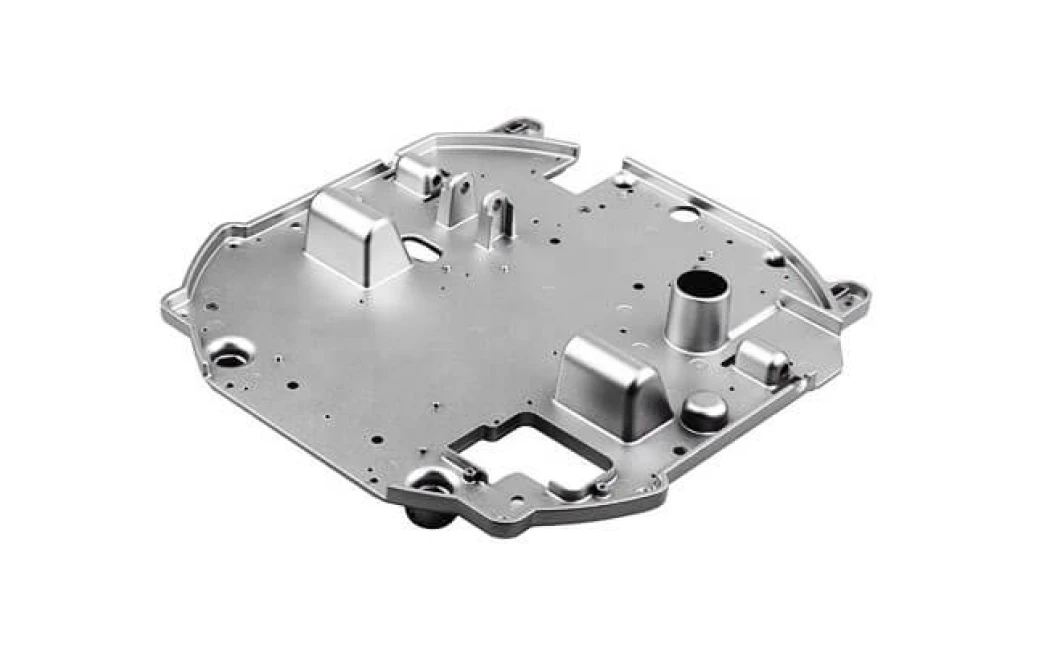

Magnesium Alloy AZ91D

AZ91D | MgAl9Zn1

ProcessCNC Machining

Need this material for your project?

Upload your drawing and get manufacturing support from our engineering team.

* Property values are for reference and may vary by alloy, temper, and processing conditions.

Magnesium Alloy AZ91D is the most widely used magnesium alloy grade. It features exceptionally lightweight, only 2/3 the weight of aluminum alloys, which is especially suitable for machining lightweight components. The material also has good casting properties and machinability. However, its corrosion resistance is average and typically requires surface treatment for protection.

Material Properties

Mechanical Properties

Yield strength
150 - 160 MPa
Tensile strength
230–250 MPa
Elongation
3 - 7%
Hardness
60 - 65 HB（
Young's modulus
45 GPa

Thermal properties

Maximum operating temperature
120 - 130°C
Thermal conductivity
51 - 72 W/m·K（20°C）
Coefficient of thermal expansion
26 - 27 μm/m·K（20-100°C）

Physical Properties

Density
1.81 g/cm³

Electrical properties

Electrical resistivity
13 - 15 μΩ·m（20°C）

Manufacturability

Manufacturability-Corrosion resistance
Good
Manufacturability-Weldability
Poor
